Linear motion guides are essential mechanical components that enable smooth, precise linear movement in industrial applications. These systems consist of a rail and a sliding carriage with recirculating ball bearings, providing high rigidity, accuracy, and load capacity while minimizing friction.Widely used in CNC machines,3D printer robotics, medical equipment, and automation systems, modern linear guides offer corrosion-resistant options (stainless steel), sealed designs for harsh environments, and customizable configurations. Their compact design and reliability make them superior to traditional sliding systems for precision motion control applications.

Linear Motion Guides key features

1,High Precision – Achieve micron-level accuracy (P0-P5 grades) for critical applications

2,Smooth Movement – Recirculating ball bearings minimize friction and vibration

3,Rigid Construction – Maintain stability under heavy loads (static/dynamic)

4,Compact Design – Space-saving vs. traditional sliding systems

5,Corrosion-Resistant Options – Stainless steel (AISI 440C) for harsh environments

6,Sealed Variants – IP54/IP65 ratings protect against dust and liquids

7,Long Service Life – 1,000+ km travel distance with proper maintenance

Linear Motion Guides Major Benefits:

1,Enhanced Efficiency – Low friction reduces energy consumption

2,Improved Accuracy – Repeatability to ±0.001mm for precision tasks

3,Reduced Maintenance – Self-lubricating options available

4,Quiet Operation – Ideal for medical/lab environments

5,Customizable – Adjustable preload, lengths, and coatings

6,Cost-Effective – Higher durability lowers total ownership cost

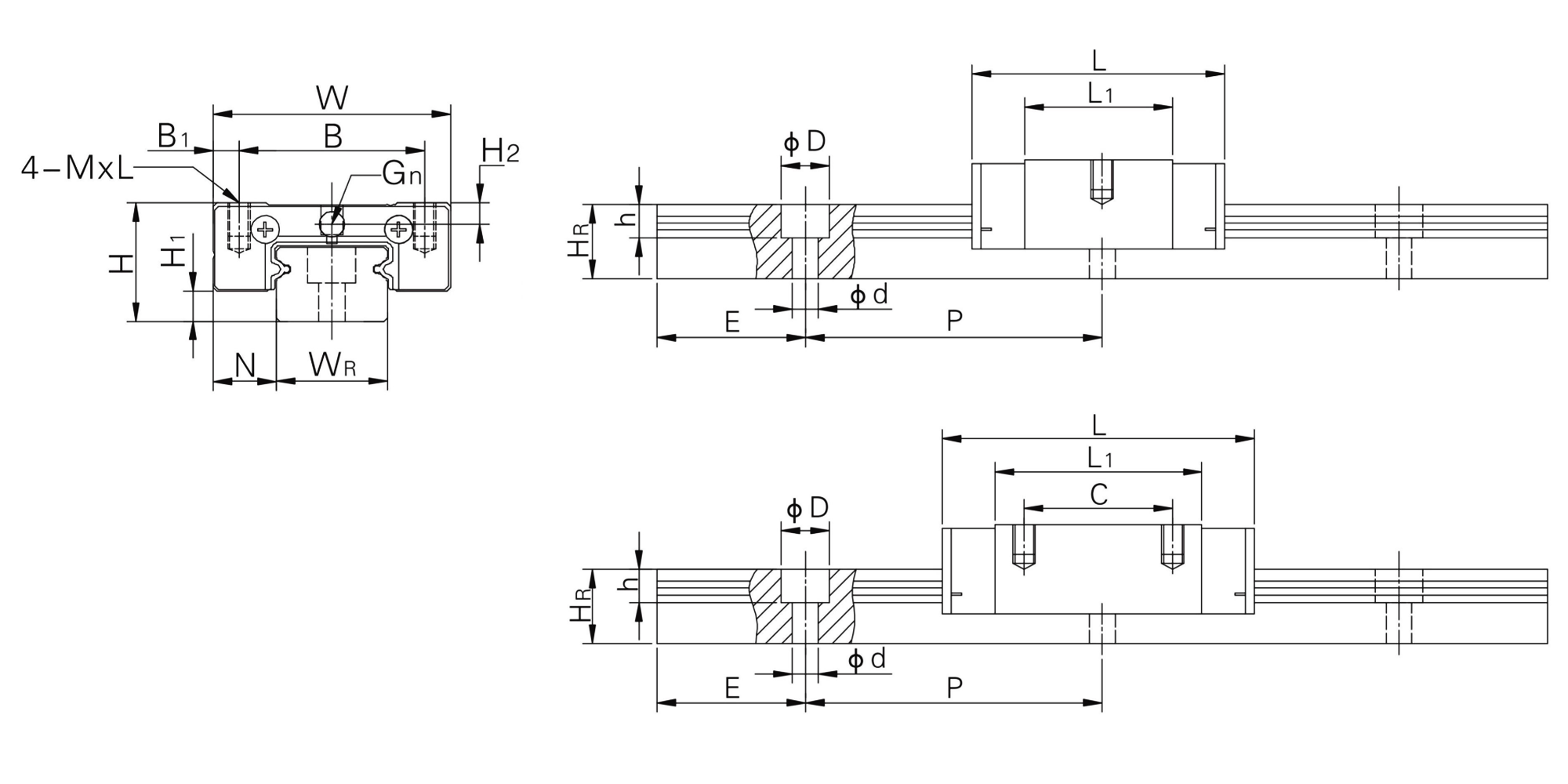

Linear Motion Guides Model Numbering System

Upgrade your machinery with our high-performance linear guide rail model KP series, designed for CNC, robotics, and automation. Featuring high rigidity, smooth motion, and long service life, our rails ensure ultra-precise positioning with options for different lengths (e.g., R1500), preload levels (ZF/Z0/Z1), and materials (CS/SS). Ideal for heavy-load applications, these guide rails come in standard (C), long (L), or short (S) versions with customizable accuracy (C/H/P). Boost efficiency and reduce maintenance—trusted by engineers worldwide!

KP - W - 9 - C - E - 1 - R -1500 - E - C - ZF - CS - 5/5

KP: Product series (KP Series)

W: Wide type (No marking = Standard type)

9: Size specification

C: Standard length (L = Long, S = Short)

E: Special slider processing (No marking = Standard)

1: Number of sliders per rail

R1500: Rail length (1500mm)

E: Special rail processing (No marking = Standard)

C: Accuracy grade (C/H/P)

ZF: Preload level (ZF/Z0/Z1, default = Z0)

CS: Material – Bearing steel (SS = Stainless steel)

5/5: Rail pitch (short spacing)

USAGE PRECAUTIONS：

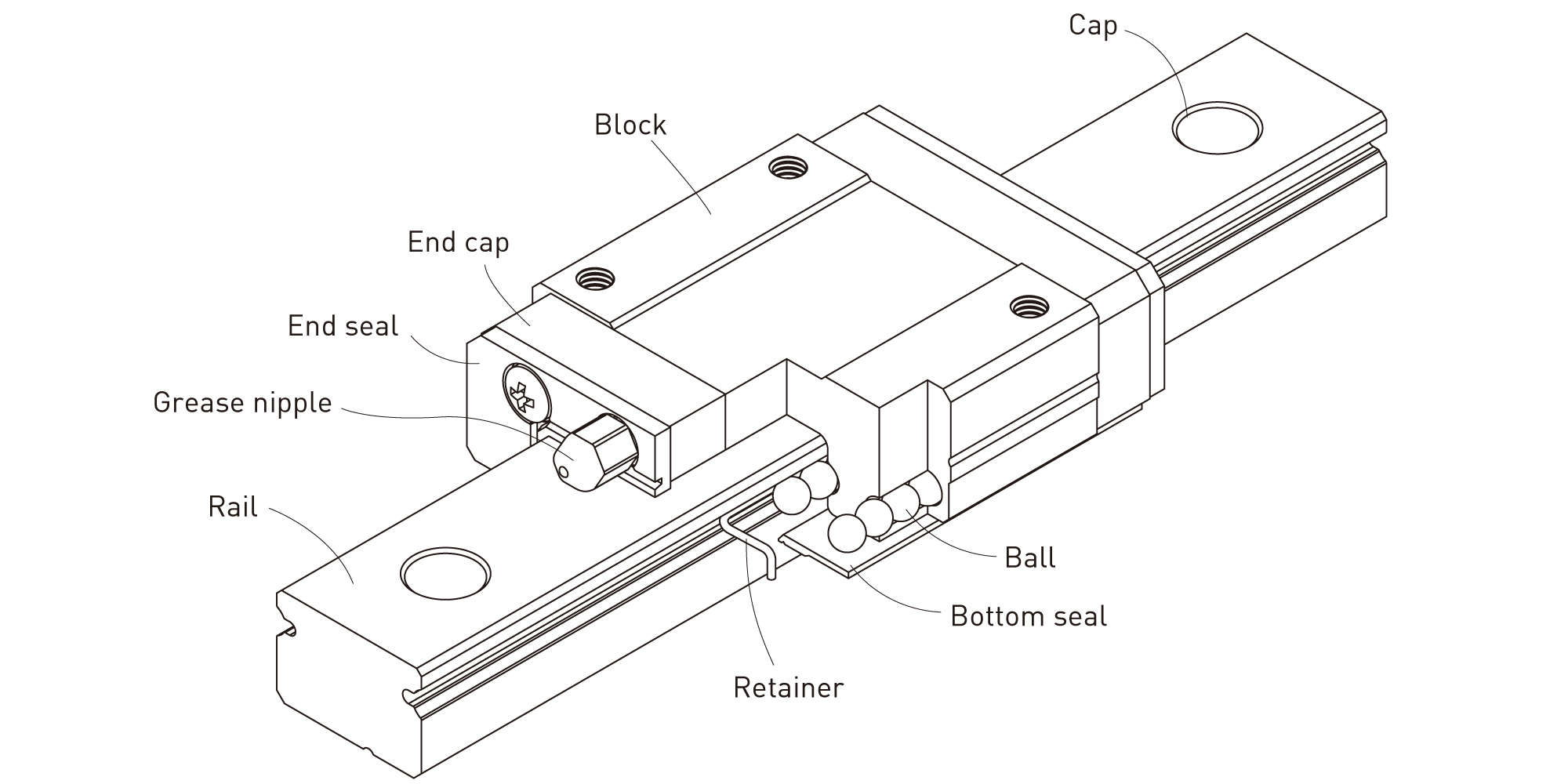

The slider is equipped with a retainer (metal wire) to prevent the balls from falling out. Therefore, when installing or removing the slider, please use the rail clamp tool provided by our company for assistance.For non-interchangeable products, if the combination of the slider and rail is altered, the radial clearance and precision cannot be guaranteed.The reference surface is located on the side of the slider and rail where the linear groove is present. When using, always align the reference surfaces of both components.The product precision is measured after the rail is fixed. (It is not the value before the rail screws are tightened.) Slight deformation of the rail in its natural state can be corrected after installation and tightening, ensuring no issues in use.Before shipment, please confirm with the Keenpa sales representative whether lubrication (grease or oil) is required.

Keenpa Linear Motion Guides Replace other Brands & Models

When looking for replacement miniature linear motion guides, you'll need to consider the brand, model number, dimensions, load capacity, and precision requirements. Below are some of the leading brands and their popular series of miniature linear guides.If you know the original brand and model, check manufacturer catalogs or distributors like Misumi, McMaster-Carr, or Motion Industries for cross-compatible options.

Why Consider Replacement Brands for Miniature Linear Motion Guides?

Choosing replacement brands for miniature linear motion guides offers several advantages over sticking with original OEM parts:

Cost Savings – Premium brands like THK or NSK can be expensive. Alternatives like HIWIN or PMI provide similar quality at lower prices.

Faster Availability – OEM parts often have long lead times. Replacement brands (e.g., Misumi, Bosch Rexroth) may be readily stocked, reducing downtime.

Improved Performance – Some alternatives offer better corrosion resistance, higher load capacity, or smoother motion than older OEM models.

Cross-Compatibility – Many brands follow industry-standard dimensions, allowing direct swaps without system redesigns.

Avoiding Obsolescence – If an OEM discontinues a model, replacement brands ensure continued operation with backward-compatible options.

Local Support – Regional suppliers often provide better technical assistance and warranties than distant OEMs.

By evaluating factors like dimensions, load ratings, and precision, replacement brands can deliver equal or better performance while saving time and money.

Key Considerations When Replacing Linear Motion Guides:

When replacing linear motion guides, ensure compatibility and performance by evaluating:

Dimensions – Match rail width, height, length, and mounting hole patterns to avoid mechanical conflicts.

Load Capacity – Verify dynamic and static load ratings meet or exceed original specifications.

Precision & Rigidity – Check accuracy grades (e.g., C, H, or P levels) for smooth operation in high-precision applications.

Material & Coating – Opt for corrosion-resistant options (stainless steel or coatings) if used in harsh environments.

Carriage Type – Ensure flanged, compact, or low-profile designs fit existing assemblies.

Lubrication & Maintenance – Some guides require periodic lubrication, while others are maintenance-free.

Brand Interchangeability – Confirm cross-compatibility (e.g., HIWIN MG vs. THK SR) if switching brands.

Choosing the right replacement linear guide rail requires careful comparison of dimensions, load ratings, and precision grades. By using cross-reference tables and consulting technical datasheets, you can ensure seamless compatibility and optimal machine performance.

Miniature Linear Motion Guides Rail Options:

In the world of industrial automation, CNC machining, and robotics, precision linear motion guides is non-negotiable. Our KP Series Linear Guide Rails deliver unmatched accuracy, durability, and versatility, tailored to fit applications from compact electronics assembly to heavy-duty manufacturing. With standard and wide models (KP/KPW), multiple size options, and custom lengths, we provide solutions engineered for excellence.

Miniature Linear Motion Guide Purchase FAQ

Whether you're designing precision machinery, medical devices, or compact automation systems, selecting the right miniature linear guide rail is crucial. Below are the most frequently asked questions (FAQ) to guide your purchase decision.

1. What is a Miniature Linear Motion Guides?

A miniature linear motion guidel is a compact, high-precision motion system that enables smooth linear movement in small-scale applications. These rails are used where space, weight, and accuracy are critical.

Key Features:

Small size (typically 3–15mm wide)

High rigidity & load capacity despite compact dimensions

Low friction & smooth motion (ball or roller bearings)

Precision-ground surfaces for accuracy

Common Applications:

Medical devices (surgical robots, lab automation)

3D printers & CNC machines

Optical systems (lens positioning)

Semiconductor equipment

Small robotics & drones

2. How Do I Choose the Right Size?

Critical Dimensions:

Rail width (e.g., 5mm, 7mm, 9mm)

Block height (affects clearance)

Length (custom cuts vs. standard sizes)

Load Capacity Considerations:

Dynamic load (C): Force during motion

Static load (Co): Max force when stationary

Moment load (Mx, My, Mz): Torsional forces

Rule of Thumb:

For smooth motion, ensure actual load ≤ 50% of dynamic load rating.

For high rigidity, choose preloaded carriages (C1 or C2 grade).

3. Ball vs. Roller Bearings – Which is Better?

Common Rail Materials:

Carbon Steel (SUJ2, hardened): High rigidity, standard for industrial use.

Stainless Steel (SUS440C/304): Corrosion-resistant (medical, food-grade).

Aluminum Alloy: Lightweight (drones, portable devices).

Carriage (Block) Materials:

Stainless steel (for clean environments)

Plastic/composite (for low weight & corrosion resistance)

5. How Important is Accuracy & Preload?

Accuracy Grades:

Standard (±50µm/m) – General automation

High Precision (±10µm/m) – CNC, optics

Ultra-Precision (±5µm/m) – Semiconductor, metrology

Preload Levels:

C0 (No preload) – Low friction, less rigidity

C1 (Light preload) – Balanced performance

C2 (Heavy preload) – High rigidity, reduced vibration

Tip: Higher preload increases stiffness but also friction.

6. How Do I Protect Against Contaminants?

Sealing Options:

Rubber seals (basic dust protection)

Metal scrapers (for chips & debris)

Bellows/covers (full protection in dirty environments)

IP Ratings:

IP54 (dust & splash resistant)

IP67 (dustproof & waterproof)

7. How to Mount Miniature Rails Correctly?

Use a machined reference surface (flatness ≤ 0.02mm/m).

Avoid over-tightening screws (can distort rail).

Align rails with dowel pins for precision.

Preload adjustment may be needed for dual-rail systems.

8. Top Brands & Price Range

Tip: For prototypes, check Misumi or SDP/SI for quick-ship options.

9. How to Reduce Costs Without Sacrificing Quality?

Buy standard lengths (avoid custom cuts).

Order in bulk (volume discounts).

Consider local suppliers (lower shipping costs).

Verify certifications (ISO 9001, RoHS).

10. Red Flags When Buying Miniature Rails

No load test reports

Inconsistent hardness (should be HRC 58-62)

Poor surface finish (leads to premature wear)

No IP rating or sealing options

Final Tips:

Request samples before bulk orders.

Check lubrication requirements (self-lubricating blocks reduce maintenance).

Test thermal expansion if used in varying temperatures.

By considering these FAQs, you can select the best miniature linear guide rail for your application with confidence.
