What Is Linear Slide Rail?

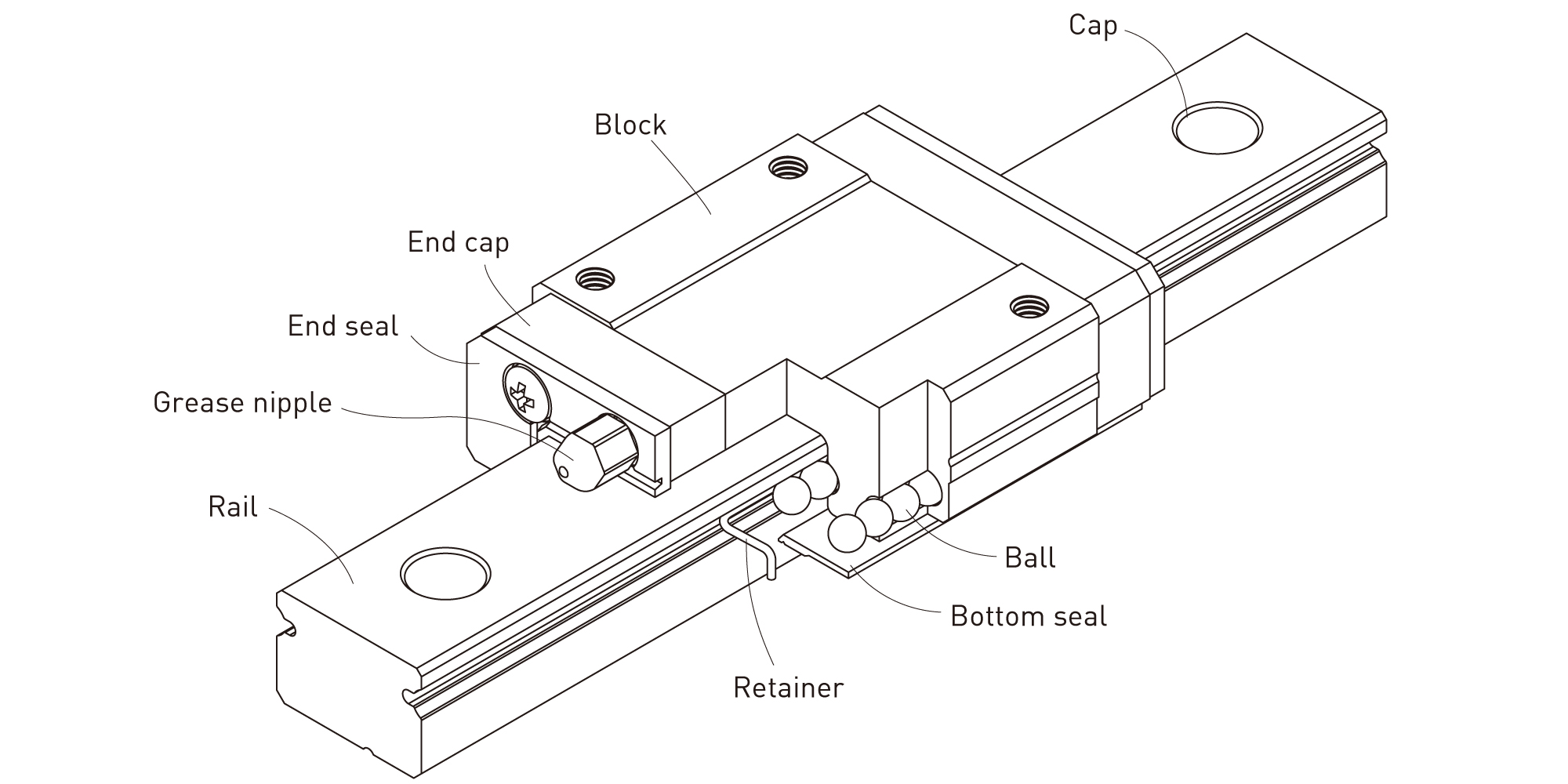

A linear slide rail (also called linear guide rail or linear motion guide) is a mechanical component designed to provide smooth and precise linear motion in machinery and automation systems. It consists of a rail (track) and a sliding block (carriage) that moves along it, often with the help of ball bearings or rollers to reduce friction.

Key Features of Linear Slide Rails:

High Precision – Ensures accurate and repeatable linear movement.

Low Friction – Uses rolling elements (balls or rollers) for smooth motion.

High Load Capacity – Supports both radial and axial loads.

Rigidity & Stability – Maintains alignment under heavy loads.

Long Service Life – Durable materials (typically hardened steel) reduce wear.

Common Types:

Ball Bearing Linear Rails – Use recirculating ball bearings (e.g., Hiwin, THK, NSK brands).

Roller Type Linear Rails – Use cylindrical rollers for higher load capacity.

Dovetail Slide Rails – Used in manual applications (e.g., machine tool slides).

Profile Rail Guides – Enclosed design for better dust/debris resistance.

Applications:

CNC machines

3D printers

Robotics

Automation systems

Medical equipment

Laser cutting machines

Advantages Over Plain Slides:

Smoother motion

Higher precision

Lower maintenance

Better load distribution

How to chose linear slide rail?

Choosing the right linear slide rail depends on several factors related to your application's requirements. Here’s a step-by-step guide to help you select the best one:

1. Determine Load Requirements

Type of Load:

Radial (Vertical) Load – Weight pressing down on the rail.

Moment Load – Tilting or twisting forces.

Combined Load – Multiple forces acting together.

Load Capacity: Check the manufacturer’s specs for static (stationary) and dynamic (moving) load ratings.

Safety Factor: For heavy-duty applications, choose a rail with 1.5x–2x the expected load capacity.

2. Consider Precision & Accuracy

Repeatability: How consistently the slide returns to the same position (e.g., ±0.01mm for CNC machines).

Precision Grades:

Standard (General use) – For automation, conveyors.

High Precision (C3/C5) – For CNC, laser cutters, medical devices.

Ultra-Precision (C0/C1) – For semiconductor equipment.

3. Travel Length & Stroke

Rail Length: Must be longer than the required travel distance.

Block Spacing: For long spans, use multiple carriages to prevent deflection.

4. Speed & Acceleration

Max Speed: Some rails handle >5 m/s, while others are optimized for slower, high-precision motion.

Recirculating Ball vs. Roller:

Ball Bearings – Smoother, quieter, better for high speeds.

Roller Bearings – Higher load capacity, but may have more friction.

5. Environmental Conditions

Dust & Debris: Choose sealed rails (with wipers/scrapers) for dirty environments.

Corrosion Resistance: Stainless steel or coated rails for humid/chemical exposure.

Temperature Range: Standard rails work in -20°C to 100°C; special versions handle extreme temps.

6. Mounting & Installation

Rail Profile:

Square Rails – More rigid, better for heavy loads.

Round Rails – Easier to install, lower cost.

Preload Adjustment: Needed for high rigidity (e.g., machine tools).

Alignment: Requires precise mounting surfaces to avoid binding.

7. Lubrication & Maintenance

Self-Lubricating Blocks: Reduce maintenance.

Grease vs. Oil Lubrication: Some rails require periodic relubrication.

8. Brand & Cost Considerations

Top Brands: Hiwin, THK, NSK, Bosch Rexroth, IKO, Thomson.

Budget vs. Performance:

Economy Rails – Suitable for light-duty automation.

Premium Rails – Necessary for high-load, high-precision applications.

Summary Checklist for Selection

FactorConsiderations

LoadRadial/moment load, safety factor

PrecisionRepeatability, accuracy grade

SpeedMax velocity, acceleration

EnvironmentSealing, corrosion resistance

SizeRail length, carriage spacing

MountingProfile type, alignment needs

MaintenanceLubrication, sealing

BudgetBrand, cost vs. performance

Final Recommendation

For CNC Machines: High-precision C3-grade square rails (e.g., Hiwin HGH).

For 3D Printers: Low-cost round rails (e.g., MGN12).

For Heavy Loads: Roller-type linear guides (e.g., THK SR).

Harsh Environments: Stainless steel + IP67 sealing (e.g., Bosch Rexroth).
